200A Lithium battery module connector

Juheng technologies co. Ltd

Lithium battery module connector

Ⅰ、Product appearance

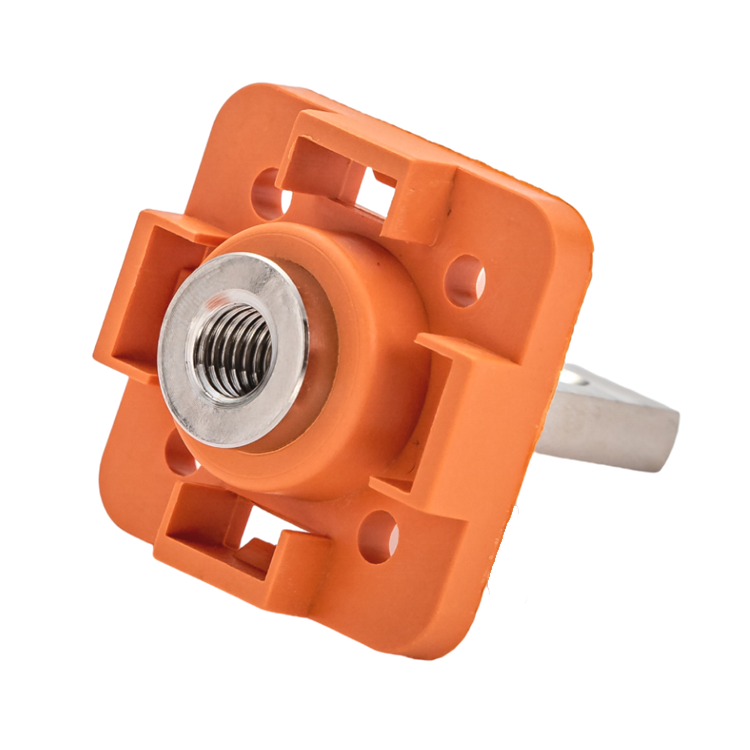

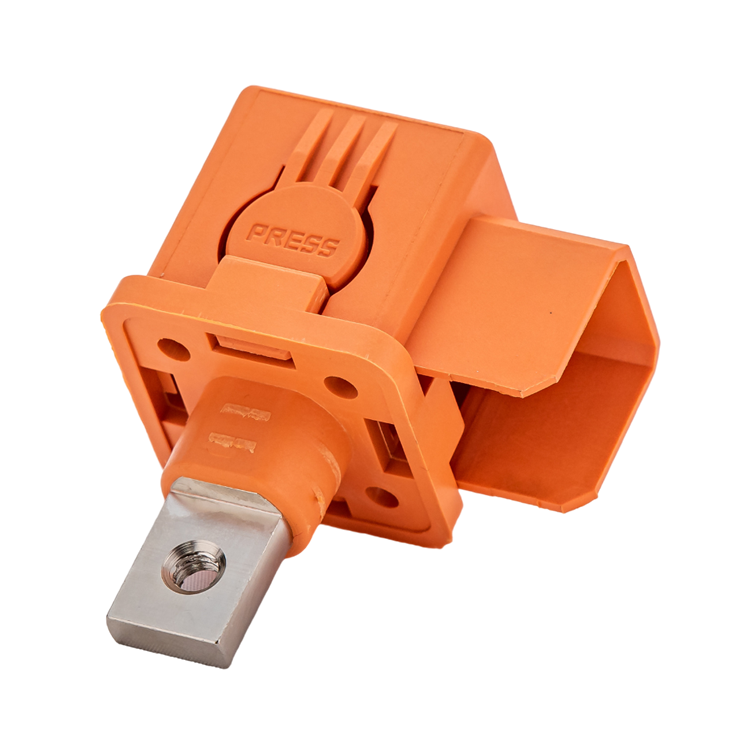

Positive pole:JH-LJ-200-02-A

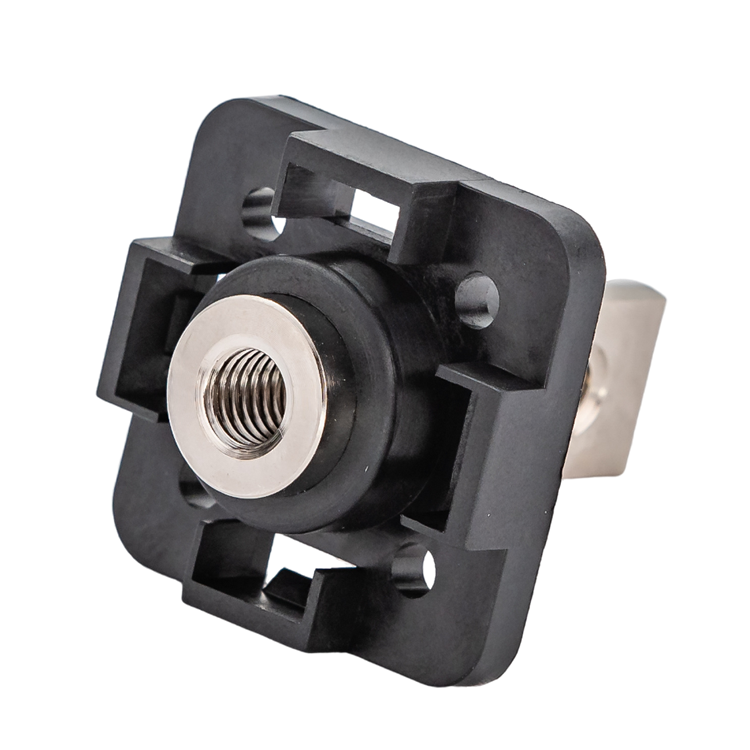

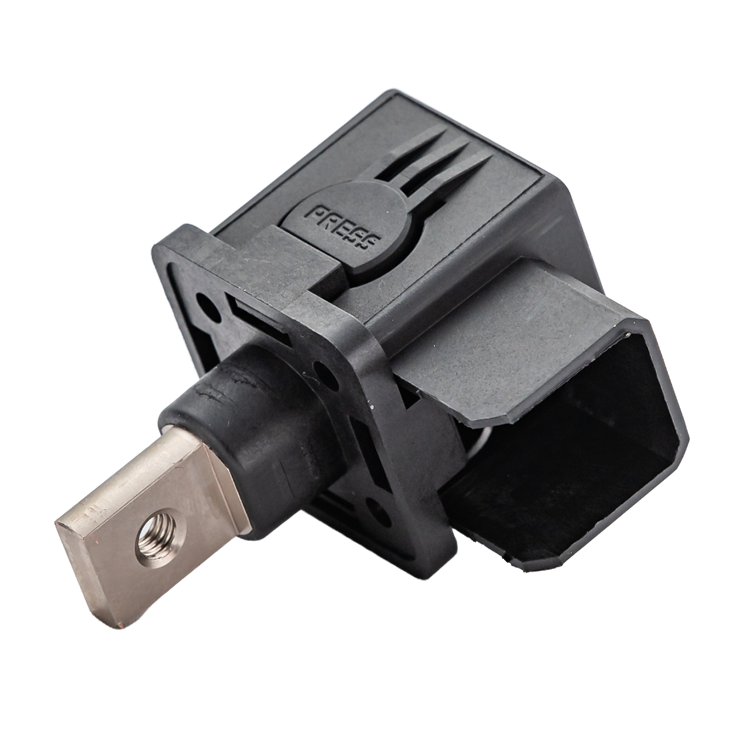

Negative pole:JH-LJ-200-02-B

Ⅱ、Performance parameter：

1、Electrical parameters

■ Rated Voltage：1000V DC

■ Rated current：200AMP

■ Withstand voltage：2000V DC

■ Insulation Resistance：≥500MΩ

■ Contact Resistance：≤0.5mΩ

2、Mechanical parameter

■ Contact surface diameter：15mm

■ Screw bore diameter：M6

■ Tightening torque: M6 Threaded hole (Coarse thread)：9N.m MAX

3、Materials composition

■ Conductor: T2 copper, nickel plated

■ Insulating material：PA66 Flame retardant V0 Level

■ Insulation parts thermal deformation temperature：205℃

■  Color：Positive pole orange color / Negative pole black color

■ Sealing ring: silicone

§

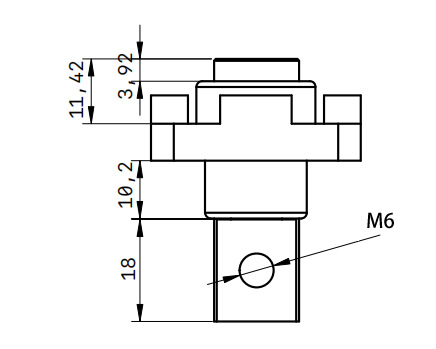

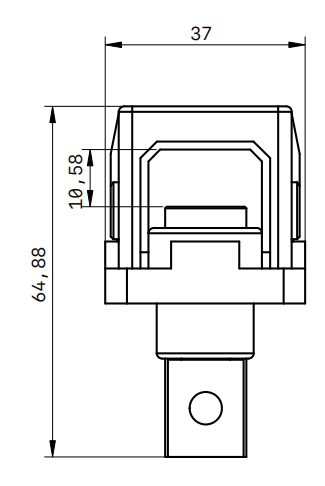

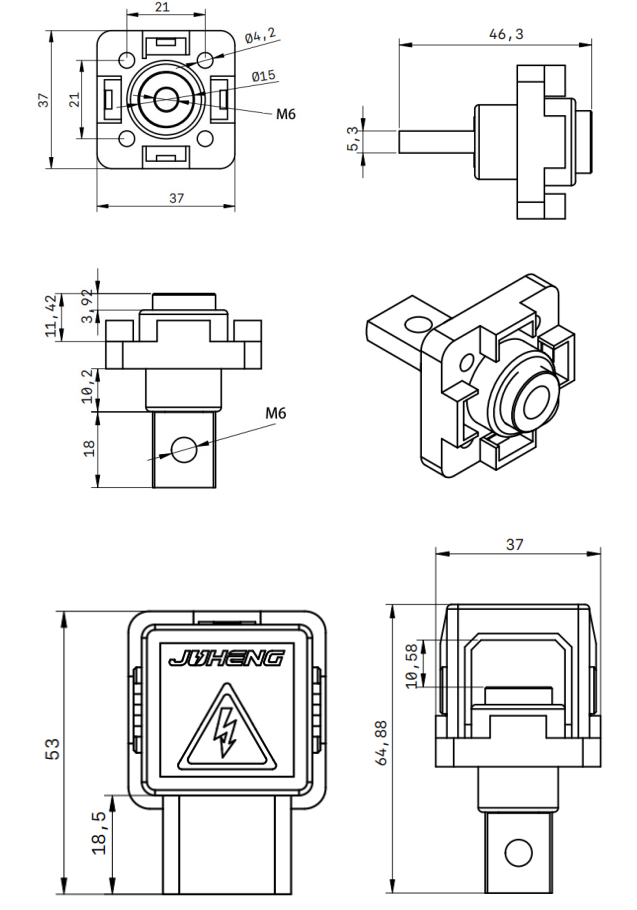

Ⅲ、External dimension

   Units：mm

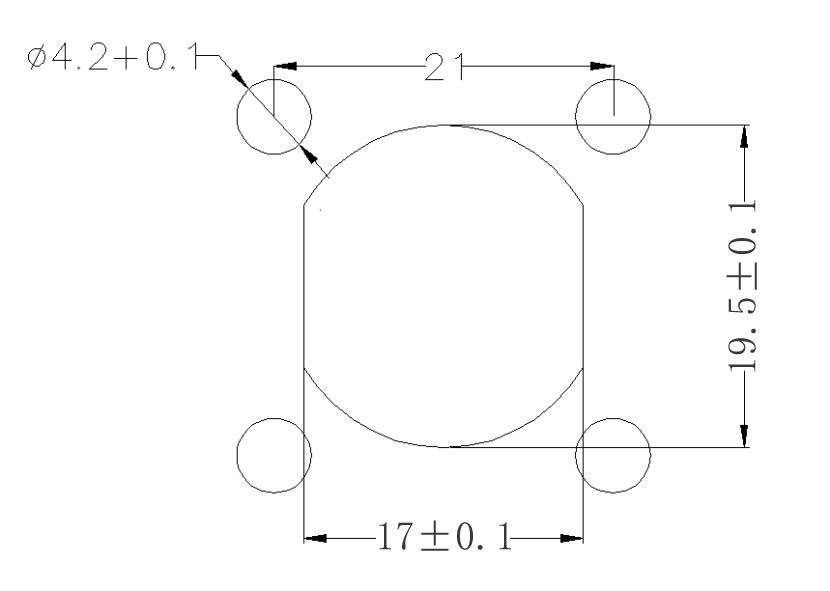

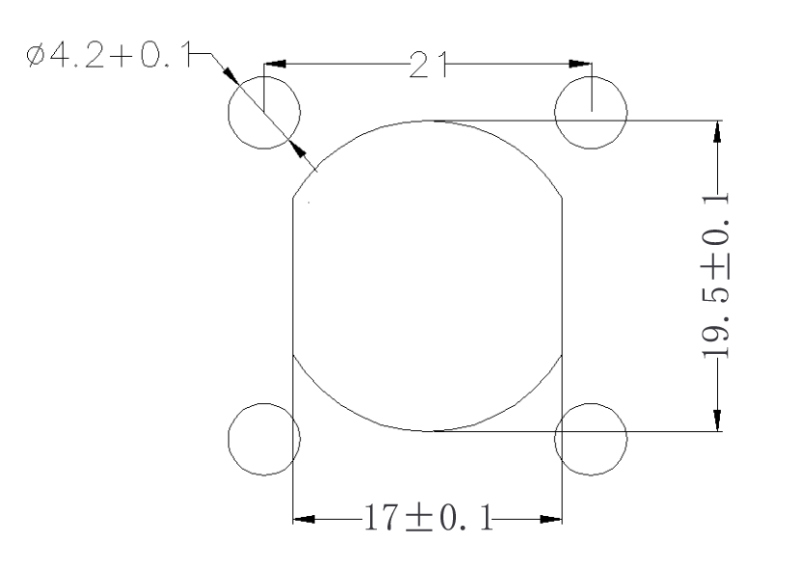

    Ⅳ、Installation trepanning

§ Units:mm
