100A Lithium battery module connector

Juheng technologies co. Ltd

Lithium battery module connector

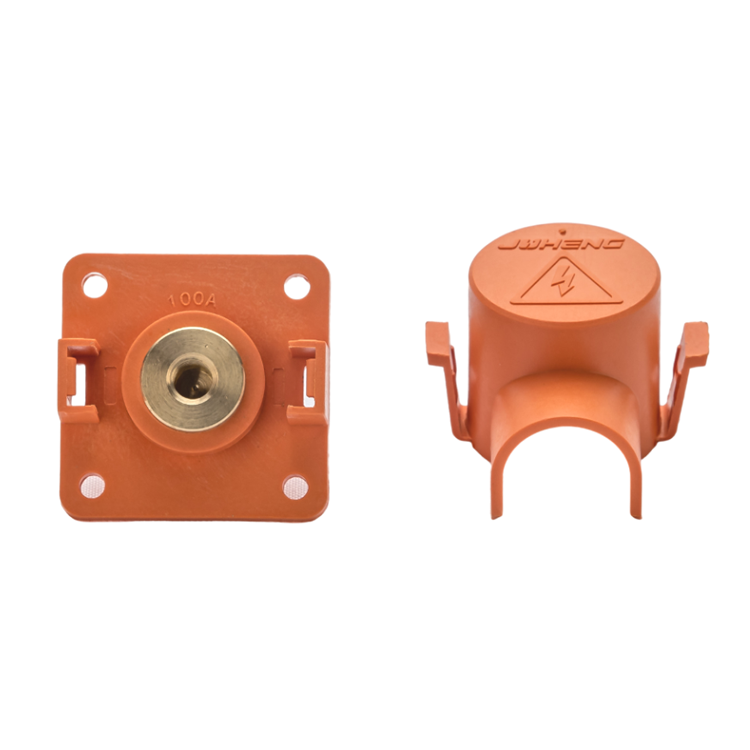

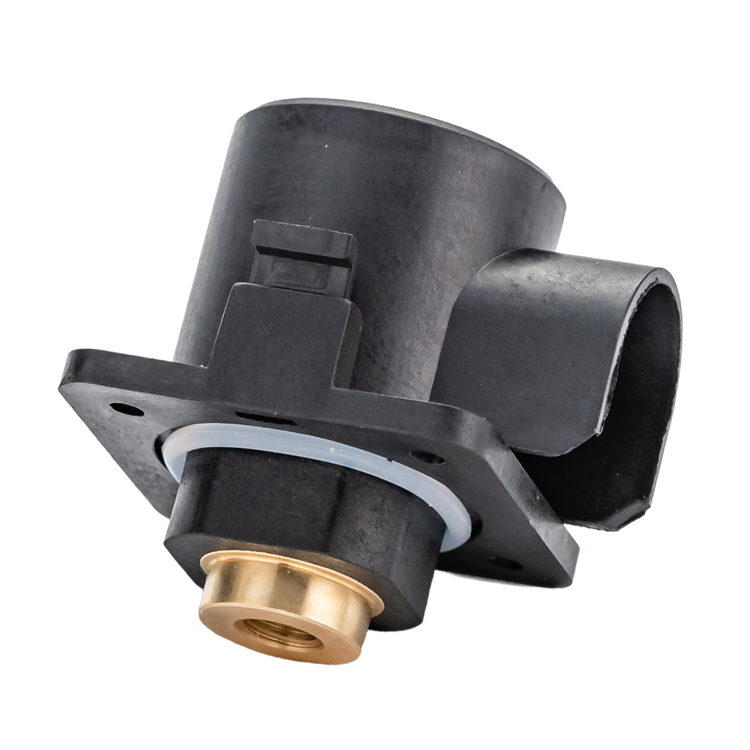

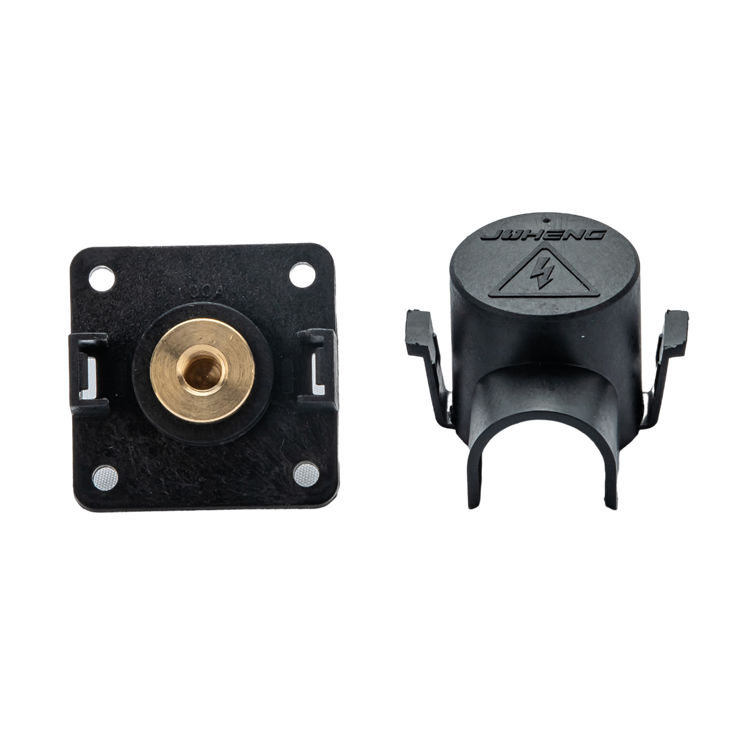

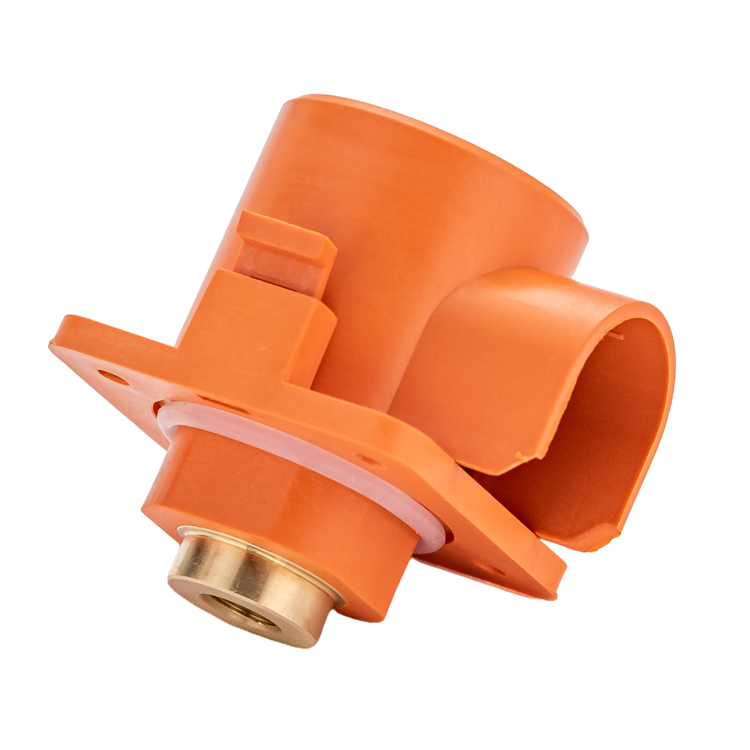

Ⅰ、Product appearance

Positive pole:JH-LJ-100-02-A

Negative pole:JH-LJ-100-02-B

Ⅱ、Performance parameter：

1、Electrical parameters

■ Rated Voltage：600V DC

■ Rated current：100AMP

■ Withstand voltage：1500V DC

■ Insulation Resistance：≥500MΩ

■ Contact Resistance：≤0.5mΩ

2、Mechanical parameter

■ Contact surface diameter：16mm

■ Screw bore diameter：M6

■ Tightening torque: M6*8 Threaded hole (Coarse thread)：9N.m MAX

3、Materials composition

■ Conductor: brass

■ Insulating material：PA66 Flame retardant V0 Level

■ Insulation parts thermal deformation temperature：205℃

■  Color：Positive pole orange color / Negative pole black color

■ Sealing ring: silicone

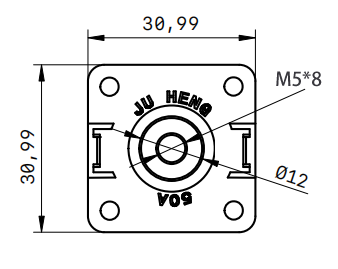

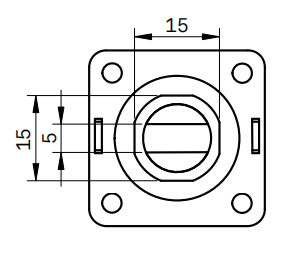

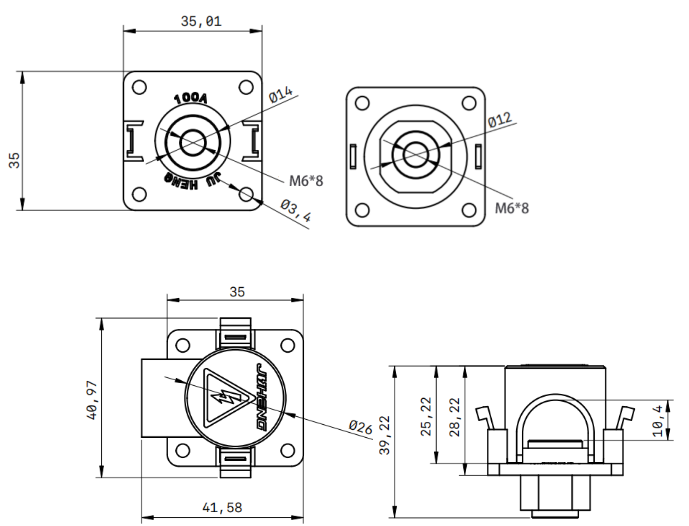

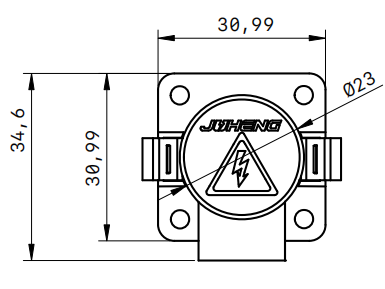

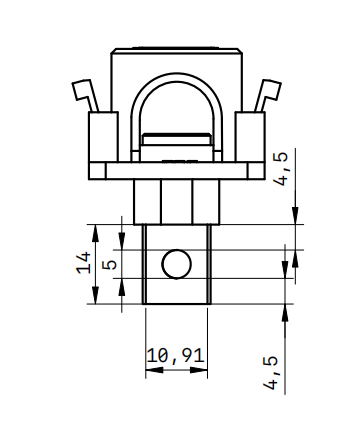

Ⅲ、External dimension

   Units：mm

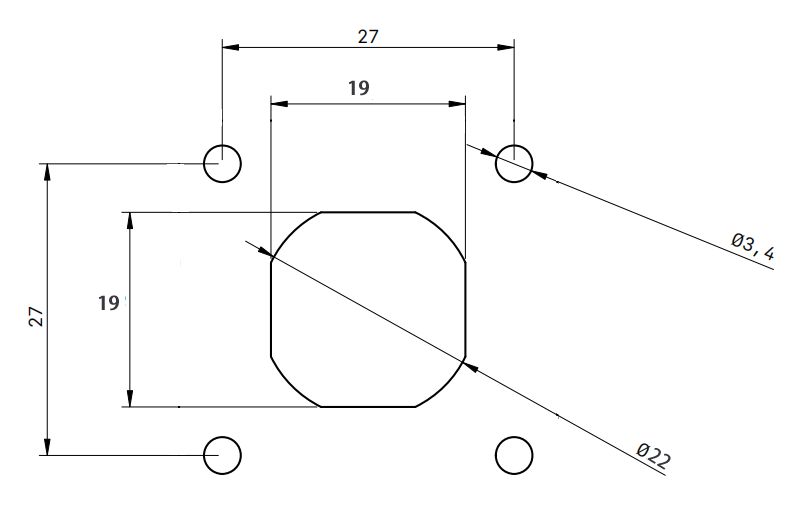

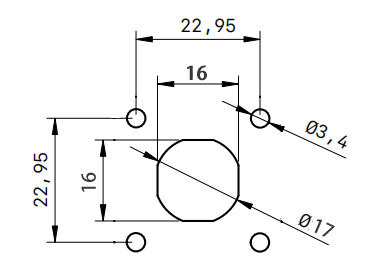

  Ⅳ、Installation trepanning

Units:mm

Juheng technologies co. Ltd
