The Comprehensive Guide to Battery Connectors for Electronic Devices

Batteries are the lifeblood of our portable electronics, and battery connectors are their beating hearts, responsible for the vital connection that powers our devices. In the world of electronic engineering, the design, and integration of battery connectors is a critical, yet often overlooked, aspect. Let's delve into the nuances of these small yet integral components and how they can make or break the functionality of our favorite gadgets.

1.Deciphering the 9V Battery Connector: Trends and Trade Secrets

As electronic devices become smaller and more complicated, the quest for space-saving components has never been more important. The traditional 9V battery connector faces stiff competition from ultra-compact alternatives, like the Lithium battery module connector, renowned for its energy density and prolonged lifespan. Engineers are now juggling the need for compactness without compromising on the connector's robustness and safety features.

Trends in battery connector design are leaning toward user-friendly connectors that are easy to handle to prevent any damage that may lead to a compromised connection. Spring-loaded battery connectors, for example, provide a secure battery connection while allowing for quick and effortless battery replacement. The trade secrets of reliable battery connectors lie in the selection of materials that withstand the test of time and the rigors of daily usage, in addition to targeted design for the specific needs of the end product.

2.The Art of Crafting Durable Connections for Small Electronics

Durable connections for small electronics call for a meticulous approach. It starts with the material selection, which must balance the mechanical requirements with electrical conductivity. Gold plating, known for its low contact resistance and high wear resistance, is a popular choice for battery connectors in high-end electronic devices. Additionally, the connector must resist the corrosion often associated with battery acid, ensuring a long and stable connection.

The design aspect is equally crucial. The connector's geometry must allow for a stable connection, even in the presence of vibrations and movement. Features such as redundant contact points and self-cleaning mechanisms can significantly enhance the durability of the connection. Moreover, the connector's assembly into the device must be foolproof, with clear polarity conventions and a secure locking mechanism to prevent accidental disconnections.

3.Tin-Dipped Battery Connectors: Combining Ease with Efficiency

Tin-dipped battery connectors offer a cost-effective solution with their ease of manufacturing and corrosion resistance. Through a process of dip soldering, the battery connector is coated with a layer of tin, offering a smooth and uniform surface that ensures good contact with the battery terminal. This method is not only efficient in terms of time and resources but also provides a secure and reliable connection.

Integrating tin-dipped connectors into the design of electronic devices requires an understanding of the soldering process and the thermal profiles to prevent damage to the battery or the connector itself. Manufacturers must also consider the environmental impact of these connectors, ensuring compliance with regulations and standards that promote sustainability.

4.Tiktokbattery's Approach to Reliable Electronic Battery Connections

As an industry leader in battery module connectors, Tiktokbattery has honed its approach to deliver reliable electronic connections. The design process at Tiktokbattery is client-centric, with a focus on creating tailor-made solutions that meet the specific requirements of the electronic device.

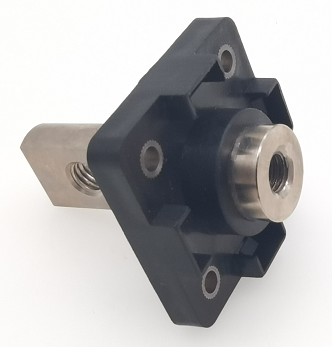

One of Tiktokbattery's standout offerings is the 300A03 connector, which promises high current-carrying capabilities and resistance to shock and vibration, making it an ideal choice for electronic vehicles and power storage systems. The 300A03's design considerations include ease of assembly and maintenance, low insertion force, and compliance with industry standards for safety and performance.

5.Custom Solutions for Unique Battery Configurations in Electronics

In the realm of bespoke electronic devices, standard battery connectors may not always suffice. Custom solutions tailored to unique battery configurations are often necessary. This is where collaborative partnerships between device manufacturers and connector suppliers shine, as they work hand in hand to develop connectors that not only fit the bill but exceed expectations.

Custom battery connectors can be designed to incorporate features like locking mechanisms, polarity guards, and smart connector technology that enables data communication between the battery and the device. They must adhere to the highest standards of safety and performance, as well as being future-proof, ready to adapt to the ever-evolving landscape of electronics.

The world of battery connectors is anything but plug-and-play; it's a nuanced domain that requires expertise and innovation to ensure the seamless operation of our electronic devices. Whether it's the traditional 9V connector or the cutting-edge lithium module connector, the choices we make in connector design and integration have an enduring impact on the electronic landscape. When it comes to powering the gadgets we rely on daily, the connector may be small in size, but it looms large in importance.
