Lithium battery module connector |

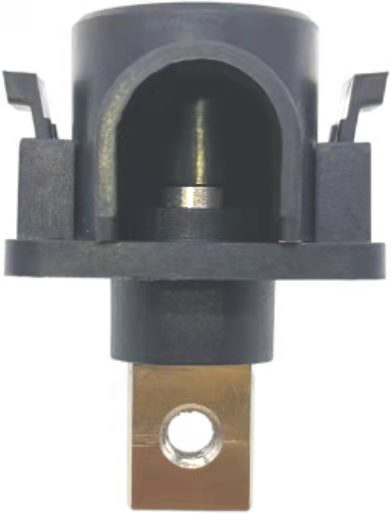

Ⅰ、Product appearance |
|
Positive pole:JH-LJ-50-CN-01-A |
Negative pole:JH-LJ-50-CN-01-B |
Ⅱ、Performance parameter: 1、Electrical parameters ■ Rated Voltage:600V DC ■ Rated current:50AMP ■ Insulation Resistance:≥500MΩ ■ Contact Resistance:≤0.5mΩ
2、Mechanical parameter ■ Contact surface diameter:12mm ■ Screw bore diameter:M5 ■ Tightening torque: M5*8 Threaded hole (Coarse thread):3N.m MAX
3、Materials composition ■ Conductor: brass , nickel plated ■ Insulating material:PA66 Flame retardant V0 Level ■ Insulation parts thermal deformation temperature:205℃ ■ Color:Positive pole orange color / Negative pole black color ■ Sealing ring: silicone
|
|

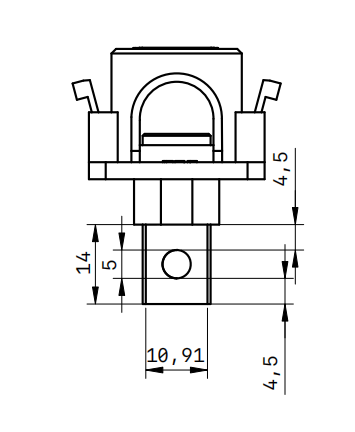

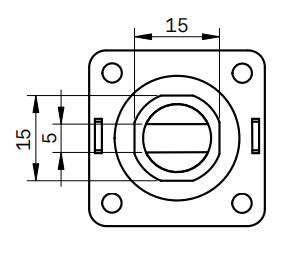

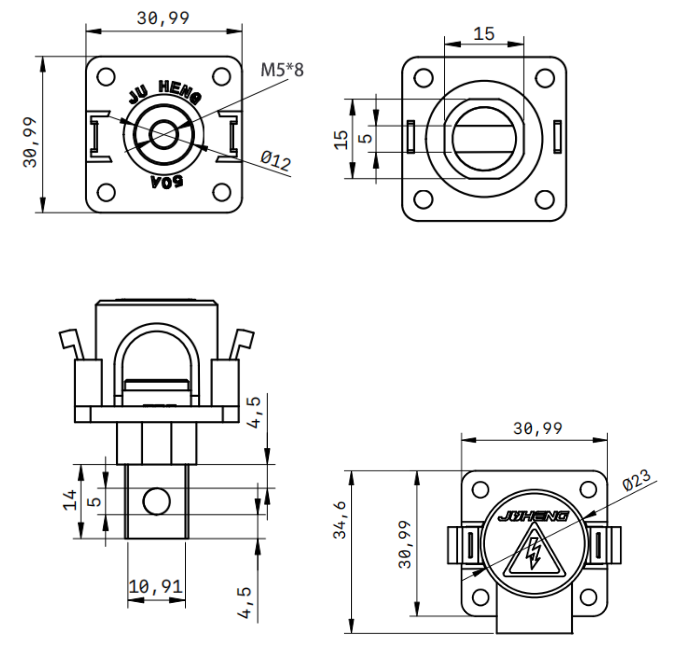

Units:mm
|
|

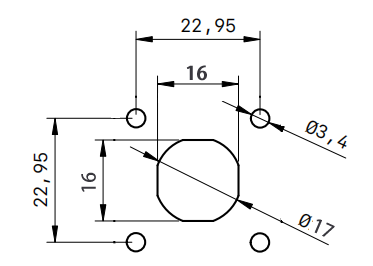

Ⅳ、Installation trepanning Units:mm
|
|
