Lithium battery module connector |

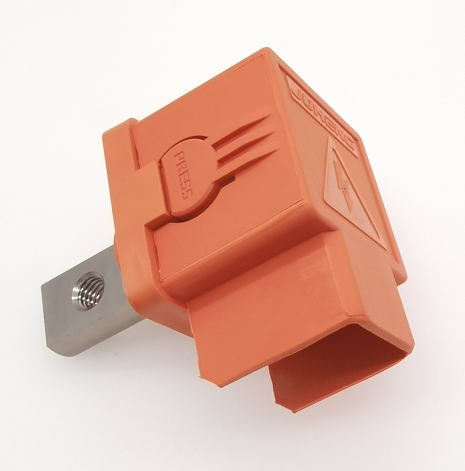

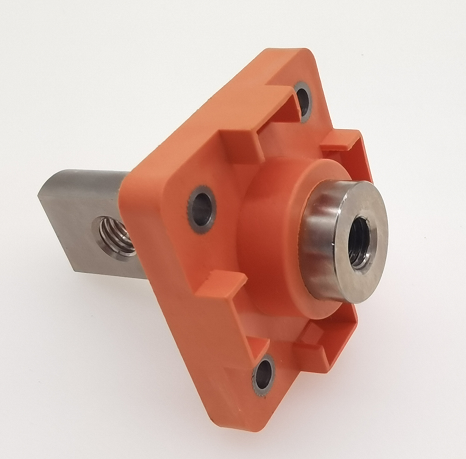

Ⅰ、Product appearance |
|
|

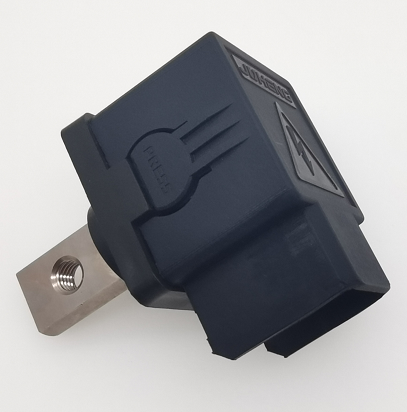

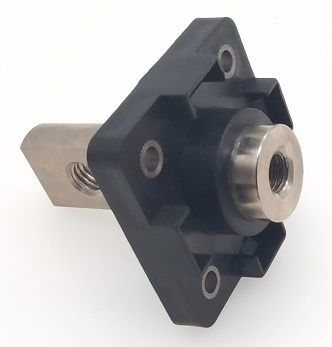

Negative pole:JH-LJ-300-03-B
|
Ⅱ、Performance parameter: 1、Electrical parameters ■ Rated Voltage:1500V DC ■ Rated current:300AMP ■ Insulation Resistance:≥500MΩ ■ Contact Resistance:≤0.5mΩ
2、Mechanical parameter ■ Contact surface diameter:18mm ■ Screw bore diameter:M8 ■ Tightening torque: M8 Threaded hole (Coarse thread):12N.m MAX
3、Materials composition ■ Conductor: T2 copper, nickel plated ■ Insulating material:PA66 Flame retardant V0 Level ■ Insulation parts thermal deformation temperature:205℃ ■ Color:Positive pole orange color / Negative pole black color ■ Sealing ring: silicone
|
|

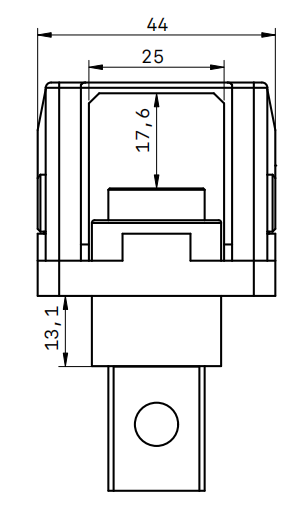

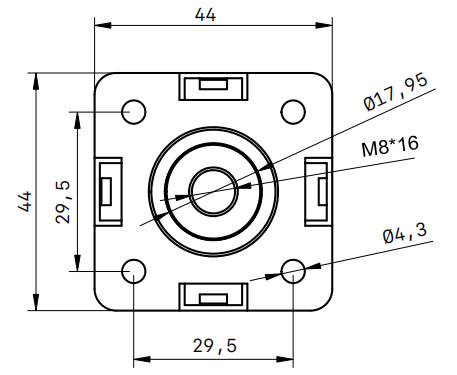

Units:mm
|
|

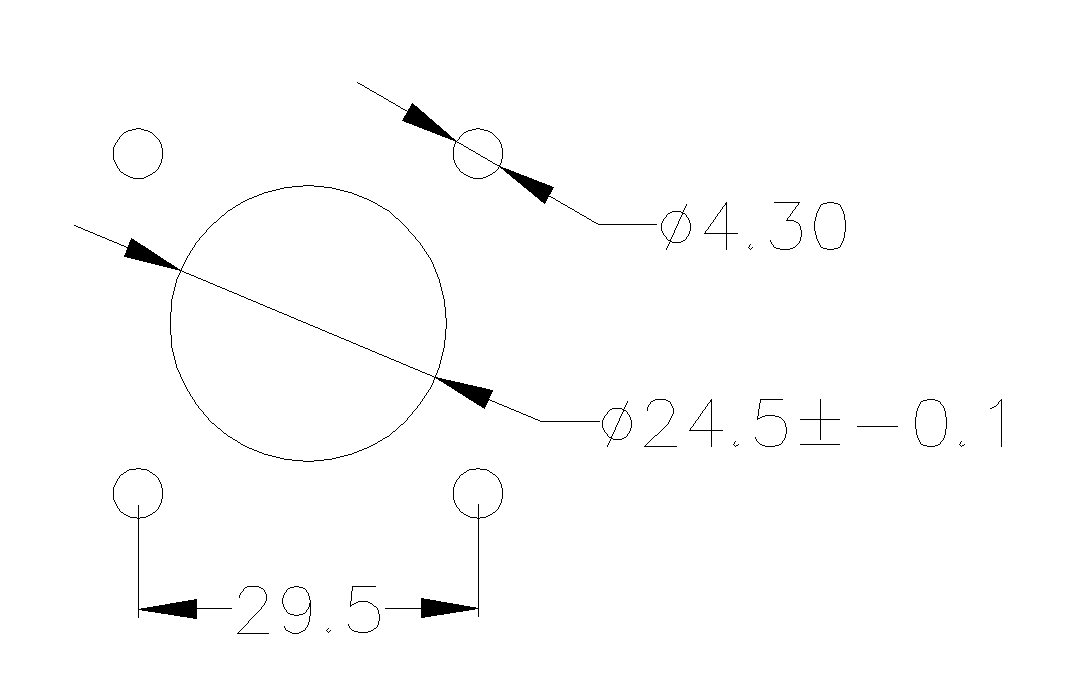

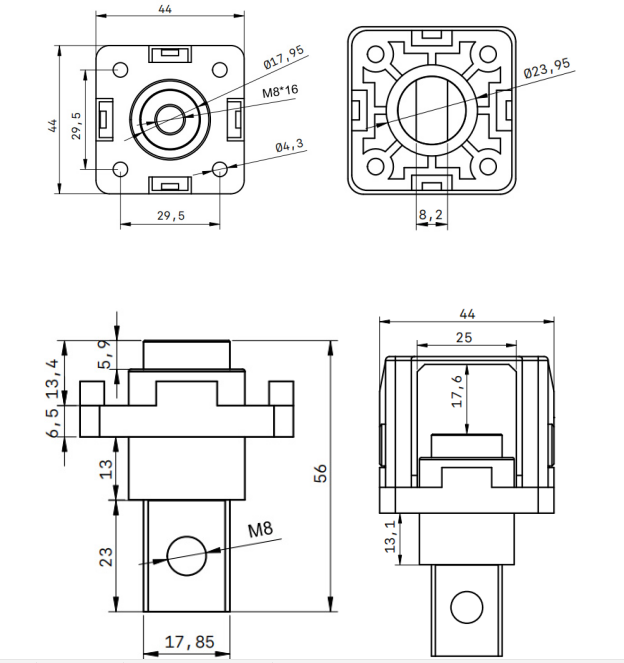

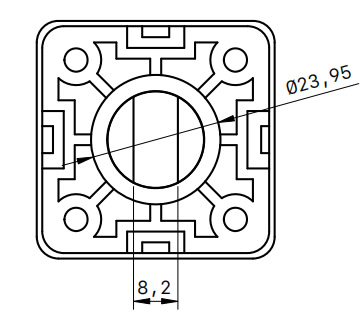

Ⅳ、Installation trepanning § Units:mm
|
|
